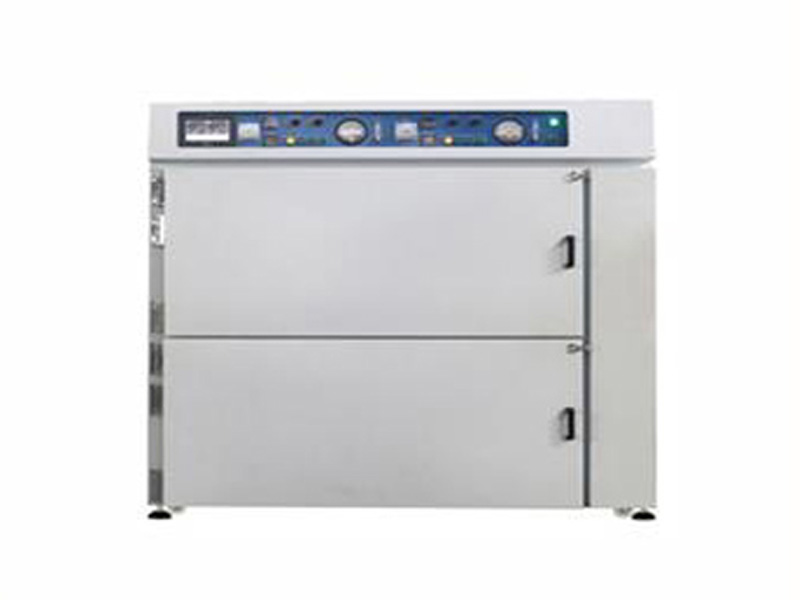

Dual door dual control clean nitrogen oven

Special case

State clearly

product name

Dust-free oven

model

MOL-2DS

Foot inch

Studio size

W600mm*D600mm*H600mm*2 boxes (double) customizable

outline dimension

W1280mm*D1250mm*1780mm

temperature range

temperature range

Normal temperature 25℃-300℃

Temperature parameter

heating rate

It takes about 40 minutes to raise the temperature to 200℃

Temperature fluctuation

±1℃

Temperature uniformity

The best is ≤ 1%℃

Note: The above performance indicators are measured at room temperature without samples.

Material quality

Inner box material

The inner box is made of stainless steel plate with SUS304# mirror surface, cleaned by soda water, and then sealed by argon arc welding.

Outer box material

The outer box is made of SS41# cold rolled steel plate, anti-static powder baking varnish after anti-rust treatment, ivory white.

Insulation material

120K high-grade aluminum silicate flour is adopted

Structure

External structure

The upper and lower 2 boxes are controlled independently, and the electric control box is located on the right side of the machine. Electromagnetic door lock. Chrome-plated handles.

insulating layer

100mm

Internal device

The single box is evenly divided into two layers, the height of the movable shelf can be adjusted, and a wind speed adjusting plate is provided.

Air supply mode

Suction type, plane horizontal side air supply, filtered by H.E.P.A imported from Japan and then blown out. The filtration efficiency is 99.99%. Cleanliness Class100.

Cooling mode

Built-in WOPAS automatic opening device, with automatic air inlet and outlet doors, the heater is closed at constant temperature and opened at cooling.

Handling method

3 "silicone soft caster and chrome-plated dustproof foot cup

Nitrogen interface

< 8 mm, can also be connected to clean dry gas, 45L nitrogen device

Temperature control instrument

Taiwan Province CAHO-P961 multi-stage temperature controller is adopted with two programs and 16-stage temperature control.

Item

The rationale is clear

Heating system

Electric heater with coated fins, type 304#, W

Adopt 304# stainless steel multi-wing centrifugal wind wheel, stainless steel shaft long shaft motor,

Dust-free accessories and materials are adopted inside the system

project

State clearly

display mode

Controller LED digital display and setting, film setting, accuracy ±0.3%FS.

Control mode

Signal source: imported CA sensor bar made in Japan 0.5%.

Output controlled components: PID automatic calculation, SSR contactless signal output.

Operation mode

Start the power supply-set the baking procedure-start the fan-start the heating-end the constant temperature-stop the heating and alarm-continue the air supply-the cooling will start automatically.

Controller input power

220V

project

State clearly

one

Leakage circuit breaker, fuse device for control circuit, over-temperature protection device, over-current protection device, motor over-current protection, buzzer warning for abnormal machine station, reverse preventer.

Power Supply

380V  3￠  50HZ   15KVA

ambient temperature

-5℃-50℃

relative humidity

20%-85%

Ambient air quality requirements

A clean environment above 10,000 grades is preferable, which can be beneficial to prolonging the service life of the high-efficiency filter.

Equipment and warranty

1. Two pointer differential pressure gauge.

2. 4 stainless steel round holes.

3. 2 automatic air doors.

4. The whole machine is guaranteed free of charge for one year, except for damage.

option

1. Six o‘clock temperature recorder. 2, computer remote monitoring. 3. Touch screen+＋PLC control. 4. Timing switch lock.

material

Product inspection report, product qualification certificate, instruction manual, electrical schematic diagram, instrument instruction manual, warranty card.

matters need attention

1. The air inlet shall be closed when the service environment exceeds ten thousand grades. 2. Wipe the inner box and the machine for maintenance regularly based on the usage.

Partial item details
