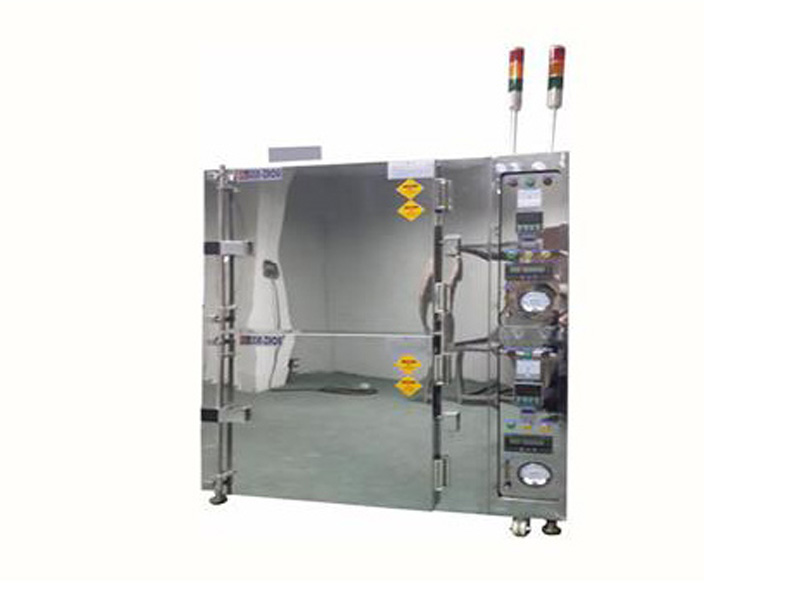

Double door dual control dust-free oven AMOL-2D/2DS

Item order

Internal capacity

Gauge

one

Power Supply

AC380V  3φ  50HZ  15KVA

2

inside measurement

effective size

Outer Dimensions

W500mm×D450mm×H600mm*2 boxes

W450mm×D450mm×H600mm*2 boxes

W1350mm×D1240mm×H1880mm

three

temperature range

Normal temperature ~300℃, adjustable heating rate 1~7℃/min (empty furnace test).

four

structural design

Double-box independent control design is adopted, and the control box is located on the right side of the machine. The single box is divided into three layers.

Inner barrel: imported SUS304#800 times 1.2 mm thick mirror stainless steel plate is used, and it is empirically cleaned with soda water to remove oil stains to avoid PARTICLE generation during baking.

Middle barrel: imported SUS304#800 times 1.2mm thick mirror stainless steel plate, cleaned with soda water, degreased and sealed by argon welding (pollution prevention).

The exterior is made of SS41# steel plate, which is painted after antirust treatment, and the wrinkles are beige.

Adopt 150K high-density ceramic fiber insulation surface with insulation thickness of 100 mm. 。

The set temperature of the equipment is 250℃, and the outside surface temperature of the door panel is ≤ room temperature +15℃.

five

Temperature control

Touch screen+＋PLC＋+temperature control module control (which can be edited and recorded), PID automatic calculation, controller LED digital display and setting, film setting, accuracy ±0.3%FS.

six

Control mode

Ethernet communication port, which can be connected with a computer to realize communication.

Signal source: The imported CA sensor made in Japan is 0.5%.

Output controlled component: SSR contactless signal output.

seven

circulatory system

1. Air inlet: N2 flowmeter (5~50L/M*2) is attached to control the air intake. Air inlet: 10mm.

2. Exhaust port 4 ",so as to achieve strong circulation effect and reduce temperature. (Your company provides exhaust fan strengthening effect, air pipe joint 6"). Single-sided horizontal forced circulation air supply.

3. The H.E.P.A.Filter36″×24″×5-7/8″ is adopted after the horizontal side air supply is adopted.

4. The filtration efficiency is 99.997%,Class100, 0.3UM ＜100. .

5. The exhaust port is 4 "φ, so as to achieve strong circulation effect and reduce the temperature. (Your company provides the reinforcement effect of the exhaust fan, and the air pipe joint is 5").

6. Water distribution cooling system to achieve strong circulation effect and cool down; Air cooling+water cooling, cooling rate ≤ 5℃/min.

7. Oxygen content: ≤ 20ppm

eight

electric heater

Adopt imported sUS310S SHEATHED HEATER as a dust-free electric heater.

nine

security apparatus/device/equipment

Leakage circuit breaker, control circuit fuse device, over-temperature protection device, current and over-current protection device, motor over-current protection, abnormal buzzer warning, reverse protector, door-mounted switch.

10

guarantee

Temperature uniformity: within 2% (empty furnace test).

Cleanliness: Dust-free accessories and materials are used in the oven.

11

equip

1. The electromagnetic door buckle is attached with a power-off anti-opening device and a plastic handle;

2. Two-point combination of air filtration; Two sets of six-point temperature testing system.

3. The design of controlling the opening and closing of nitrogen and air in coordination with the baking process to avoid N2 waste and cooling speed;

4. Two micro-oxygen content testers.

12

Performance characteristics

1) Intermittent exhaust can be set to avoid nitrogen waste.

2), can indicate the furnace pressure, to ensure the safety of use.

3) Six-point temperature detection can monitor the temperature in the furnace.

4), water circulation cooling, shorten the process time.

5), stainless steel production, convenient cleaning, long life.

6) Good temperature uniformity and small temperature difference.

7), real-time display of nitrogen flow, furnace oxygen content and furnace temperature data.

13

Some customers

Tianshui Huatian Xi ‘an 771 Institute Jilin Huawei Dongguan Jiequn Dongguan Huihua Zhongshan Guoji Jianghua Electronics Sichuan Dayan Zhiqun Electronics Shandong Taijixing Changdian and so on.
