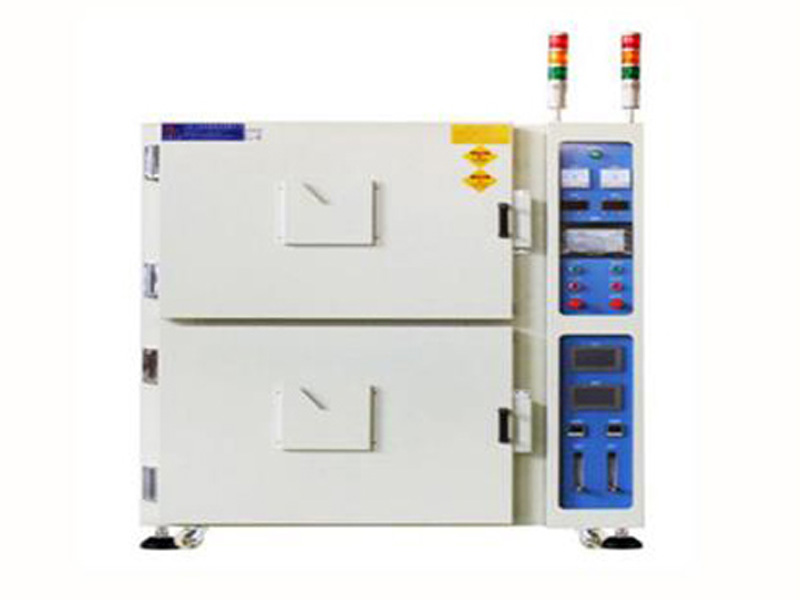

Dust-free oven: MOL-2DS

Item order

Class order

Make clear the rules and regulations

one

area of application

Suitable for dispensing electronic components, touch screen, camera module, curing after printing and baking after packaging semiconductor devices such as IC and IGBT.

2

power

Total power of equipment

15KVA

Electric source

AC380V  3φ  50HZ

three

Equipment size

inside measurement

W700mm×D600mm×H560mmX2 boxes (size can be customized)

Outer Dimensions

W1460mm×D1058mm×H1880mm (approx.)

four

Temperature parameter

Normal temperature +15℃~250℃, normal temperature ~175℃ takes about 30 minutes (empty furnace test);

The service temperature is 175℃, and the temperature uniformity is within 1%℃ (empty furnace test, measured after constant temperature for half an hour);

The control accuracy is 1℃.

Uniformity

test method

At nine o‘clock, they are distributed in the upper, middle and lower parts of the oven, and the probe is 100mm away from the inlet and outlet grille. After 30 minutes of constant temperature, it is measured with no load.

Exterior temperature

At 175℃, it is less than or equal to room temperature+15℃, except for the four sides of the oven door and the exhaust port.

five

Equipment structure

1. The upper and lower double doors and double controls are adopted. The control box is located on the right side of the machine, and there is a movable shelf inside, so that the height of Fang Chen can be adjusted at will, and the gap between floors can be adjusted.

2. Inner barrel: SUS304# mirror stainless steel plate is used, and it is cleaned with empirical soda water to remove oil and avoid PARTICLE during baking.

3. Middle barrel: imported SUS304# mirror stainless steel plate is adopted, cleaned with empirical soda water, degreased and sealed by argon welding (pollution prevention).

4. Outer box: made of SS41# cold-rolled steel plate after antirust treatment and painted with powder paint, with beige wrinkles.

5. Adopt 120K high-grade rock wool and 120K high-grade silicone rubber sealing strip, with insulation thickness of 90mm and air layer for insulation, which is energy-saving and environment-friendly.

6. The electromagnetic door lock is made of *2, which is matched with the buckle to prevent the door from opening, and the operation is simple and convenient.

7. Door opening mode: open from right to left, just above the right side of the door, and each door is equipped with an information bag.

8. A 50mm test hole is opened on the back of a single box, and there are two boxes in total.

six

temperature control system

1. Adopt 7-inch multi-section temperature control panel, 3 levels of authority setting, a total of 11 authority settings, and 30 groups of optional programs (each group can set 30 temperature sections).

2. Equipped with 485 communication function and real-time remote data reading (the machine can query the temperature data through the computer), the temperature curve and temperature data can be recorded by itself (it can be recorded for 120 days), the data can be exported, PID can be calculated automatically, LCD digital display and setting, and the accuracy is 1℃.

3. Two temperature control modules.

4. Each box is equipped with a frequency converter to adjust the air volume.

5. Thermocouple is used for thermostat and overtemperature protection.

6. Electronic XZ-480 overtemperature protection, overtemperature → fault indicator light and BZ alarm to remind employees of faults, and automatically cut off heating at the same time to ensure production safety.

seven

Control mode

1. The output is adopted by the control element: Taiwan Province Xuanrong SSR contactless signal output.

2. Air inlet: an electronic N2 flowmeter (10-100L/Min) is attached. Note: the flow rate of a single box is 0-50L/min;

Control the air intake. The air intake is 10mm, and each box is equipped with one flowmeter, totaling two flowmeters.

eight

Circulating air system

1. The exhaust port is equipped with the function of automatically adjusting the opening and closing (the time can be adjusted and set).

2. Intermittent exhaust to ensure the oxygen content of 50ppm, and the exhaust port is set at the back upper part.

3. Single-sided horizontal forced circulation air supply.

nine

cooling system

Equipped with water cooling system, which adopts high-temperature and pressure-resistant stainless steel tube cooler;

Cooling time: it takes about 60 minutes from 175℃ to 40℃.

10

Internal device

1. Adopt a sheathed stainless steel (SHEATHED HEATER) dust-free electrothermal generator, which can be installed as a whole.

2. The single box is divided into two layers, each layer is about 300mm high, and each box is equipped with 2 stainless steel leaky grids, totaling 4 pieces.

11

Appearance device

Air inlet (nitrogen inlet), air outlet (intermittent exhaust), installation of four carrying wheels and positioning script.

11

Safety function

1. Leakage circuit breaker, control circuit fuse device, over-temperature protection device, current and over-current protection device, motor over-current protection, abnormal buzzer warning of the machine, reverse preventer, and installation of nitrogen control system. All electrical accessories adopt first-class products that meet national standards.

2. Cleanliness: Dust-free accessories and materials are used in the oven.

12

Adhesion standard

Experimental methods of electric heating equipment in People‘s Republic of China (PRC) GB/T10066-2004, JB20033-2004 and safety of electric heating devices GB5959.1-2005.

13

deploy

1. Two-point combination of air filtration.

2. Adopt electromagnetic door lock to prevent the door from opening in the middle, and the door opening temperature can be set by the touch screen.

3. Three-color indication: yellow operation end indication, green operation indication, and red is abnormal indication such as overtemperature.

4. Cooperate with the baking process, control the opening and closing of nitrogen and air to avoid the waste of N2 and the design of cooling speed.

5. Equipped with a paperless recorder for 12-point temperature detection, with single screen and double images, with 6 points in each box.

6. A 3m-long power cord is attached with a Chinese instruction manual (including circuit diagram).

14

ensure the building quality

1. After-sales service for replacing and repairing faulty parts free of charge within one year after delivery. (Except for the damage caused by natural disasters, abnormal power and improper human use, our company will maintain it completely free of charge).

2. Outside the warranty period, service for life and charge as appropriate.

15

Performance characteristics

1. Intermittent exhaust can be set to avoid the waste of nitrogen.

2. Multiple protection systems to ensure safe use.

3. High-quality temperature control system can accurately monitor the temperature in the furnace.

4. Circulating cooling to shorten the process time.

5. Made of stainless steel, convenient for cleaning and long service life.

6. Good temperature uniformity and small temperature difference.

7. With 485 communication function and real-time remote data reading, the machine can query temperature data and temperature curve through computer.

16

Installation requirements

1. Equipped with 380V 3-phase 50Hz 60An power supply.

2. Equipped with water supply pipeline (diameter 25mm)

3. Equipped with nitrogen gas supply pipeline

17

Some cooperative customers

Tianshui Huatian Xi ‘an 771 Institute Jilin Huawei deeply loves semiconductors Zhongshan Guoji Jianghua Electronics Sichuan Dayan Sichuan Baishi Zhiqun Electronics Changdian Jincheng Xieli Technology Ji Jing Fu Man Jing TEDA Leyiwen Semiconductor Enzhipu Electronics and so on.
