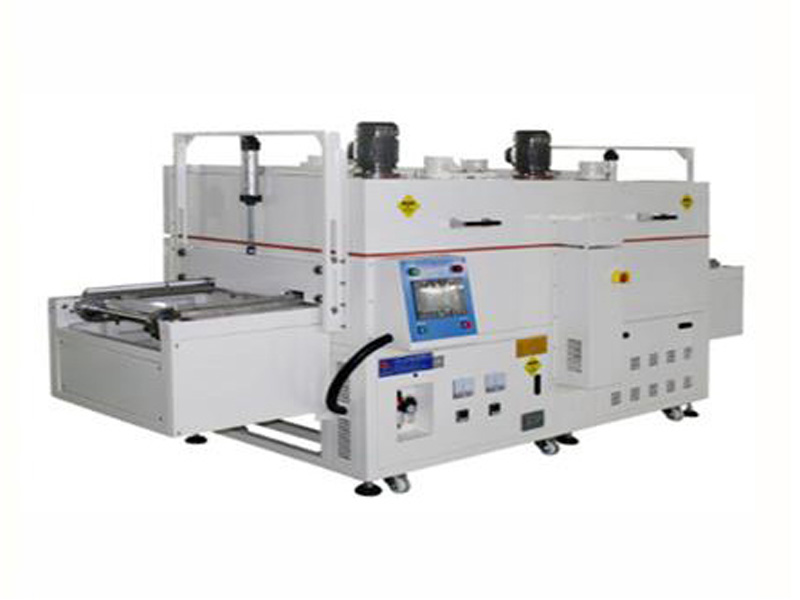

Item order |
content |
specifications |
|
one |
Power Supply |
AC380V 3φ 50HZ 30KW (multi-channel temperature monitoring, standby heating control system) |
|
2 |
inside measurement |
W700mm×L10287mm×H400mm |
|
three |
Outer Dimensions |
W1210mm×L12000mm×H1950mm (reference size) |
|
four |
Machine size |
1. Feeding length: 300mm, 2. Heating section length: 10287 mm, 3. The discharging section is 600 mm. 4. There are 12 groups of temperature control, 2 in each group, one of which is over-temperature protection, with 24 in total. 5. Center distance of conveyor chain: 600 mm, entrance and exit height: 400 mm. |
|
five |
Temperature control system |
XZ-960 automatic temperature controller (digital setting, LED display, SSR output, PID automatic calculation high-precision controller), timer setting adjustment, constant temperature timing, etc. |
|
six |
Machine structure |
1. Material of inner and outer boxes: the inner box is made of SUS430# mirror stainless steel plate, and the outer box is made of SS41# cold-rolled steel plate, which is painted with anti-static powder after antirust treatment, and the wrinkles are beige. 2. The frame is welded and painted with 40*40*1.5T square, and the metal plate around the frame is closed and detachable. 3. Adopt 120K advanced thermal insulation cotton, the thermal insulation thickness is 80mm, add air layer for thermal insulation, and modify the silica gel sealing strip with high temperature resistance, with the maximum temperature resistance of 260℃ (the surface temperature of the equipment casing shall not exceed 35℃). 4. In order to reduce the heat loss, pneumatic doors are designed before and after each heating section, which is convenient for maintenance and cleaning. 5. If the discharging section is equipped with automatic loading and unloading mechanism. 6. One test hole with a diameter of ≤20mm or less shall be opened in each section. The long-axis Taiwan Province motor dedicated to the oven is used, and the blade wind wheel is used for air supply. |
|
seven |
air supply system |
Single-sided horizontal forced circulation air supply, special air path design, uniform heating temperature Long-axis motor special for oven with hot air Adopt powerful multi-wing wind wheel |
|
eight |
heater |
Adopt stainless steel heater. |
|
nine |
conveying system |
1. Adopt 3HP powerful motor, cooperate with 1: 200 gear reducer, and Taiwan Province "Yi Neng" 3HP variable frequency governor for speed regulation. 2. Speed 1~10m/min. Stainless steel chain conveying. |
|
10 |
Safety protection system |
1. Over-temperature prevention alarm device 2. Emergency stop device for conveying system failure. 3. Motor overload protection, electrothermal overcurrent protection, phase sequence dislocation protection, leakage protection, control loop and overload protection. 4. Signal indicator (red fault indicator, yellow standby indicator, green operation indicator) 5. Pneumatic door safety foolproof device. |
|
11 |
equip |
1. The conveying direction faces the control panel, from left to right. 2. Exhaust port ￠100mm, with blade-type adjusting seat, with displacement of 6CMM. 3. Two Chinese manuals and some consumable parts. |
|
12 |
ensure the building quality |
The warranty period is one year. |
|
13 |
Features |
1. Fast drying speed and uniform temperature. 2.SSR control, small temperature fluctuation buffer. 3. Clean design, suitable for dust-free workshop. 4. The safety protection facilities are fully equipped with high safety performance. 5. Multi-layer heat insulation design, good sealing and low external temperature. 6. The frame is formed by square welding, and the interior of the sheet metal is reinforced by trough iron, so the whole machine is solid and firm. 7. Smooth transportation and effective deviation prevention. 8. The interior of the whole machine is made of mirror stainless steel plate sealed by argon arc welding, and the cold-rolled steel plate in the outer box is rusted and painted with anti-static powder, and the side of the frame is sealed with beautiful appearance. 9. Save energy and reduce consumption. The output power after constant temperature is 1/3 of that of the whole machine. 10. Convenient mechanism maintenance (internal cleaning) 11. The temperature of each section is automatically saved when the equipment is running and can be retrieved at any time (with data saving function). 12. Real-time temperature monitoring and visual confirmation. Design considerations of equipment visit surface and operation surface |
