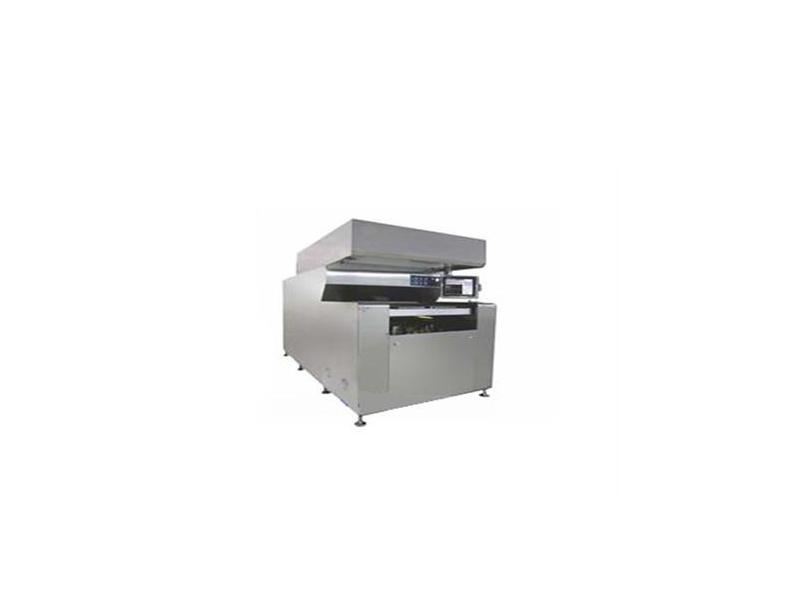

CCD automatic alignment LED welding exposure machine

Product parameter

Standard number:

KST-PDATA-05

Release date:

2019/9/10

Semi-automatic LED anti-welding exposure machine

Implementation date:

2019/9/11

VersionNo.:

V1.0

Compilation:

Review:

Approval:

Technical parameters of semi-automatic LED anti-welding exposure machine

serial number

project

technical parameter

remarks

□ KST-SA6457-FH

□ KST-SA7262-FH

one

Light source type

UV-LED

Parallel cold light source

2

Suitable ink

Green oil, black oil, blue oil, etc

Mainstream brand

three

Exposure mode

One-sided exposure

/

four

Lvyou bridge

Green oil bridge 3.0mil/welding-proof window 1.5mil

/

five

Energy uniformity

≥85%

Measure with KST LED special energy meter.

six

Alignment accuracy

±12.5um/±0.5mil

/

seven

exposure control

The light intensity of 0-100% can be set.

/

eight

Alignment system

4 CCD, CCD can move freely (target can be switched and selected)

/

nine

time of exposure

9-12 energy exposure time < ＜10S.

Level 21 energy ruler, the specific time depends on the ink used.

10

Production size

12"×12" (min)

12"×12" (min)

21.5"×24.5" (max)

24.5"×28.5" (max)

11

reducing excess capacity

3.5-4 faces/minute

/

12

Thickness range

0.1mm-3.5mm (including copper thickness)

/

13

Bearing capacity of production plate

＜2.0kg

/

14

Negative fixing mode

Vacuum adsorption

/

15

Exposure film size

24"×28"

26"×30"

/

16

average power

<5.0KW

<5.5KW

/

17

Life of UV-LED lamp

Guaranteed for three years

/

18

Control system and interface

Chinese touch PC control display

/

19

Window range

6.9mm×5.1mm

/

20

Counterposition mode

Double-frame operation, automatic movement

/

21

optical glass

High strength optical glass

/

22

Table surface temperature

22℃±3℃

It is necessary to ensure that the ambient temperature of the workshop is within the required range.

23

defencive function

Fault alarm; Security alarm

/

24

Vacuum requirement

Frame: 10cmhg-30cmhg

/

Film: > ＞60cmhg

25

Environmental demand of clean room

Temperature: 22℃ 1℃

Humidity: 55% 5%

/

26

Air pressure source demand

5.5 kg/cm, flow rate of 500L/min.

/

27

Ice water demand

7-12℃, flow 5L/min, pressure 2-3 kg/cm.

28

Power demand

Tn-s 380VAC/50Hz/30KVA

Tn-s 380VAC/50Hz/35KVA

/

29

Equipment size

2780(L)×1650 (W)×1980(H)

3015(L)×1730 (W)×1980(H)

Does not include the space occupied by the dust wheel tray; Accessories such as ice water machine and vacuum pump box are not included.

30

Equipment weight

1600Kg

1800Kg

31

safe

Meet the national safety standards

/

32

Anomaly detection

The machine is abnormal in production and has alarm function.

/
