product name |

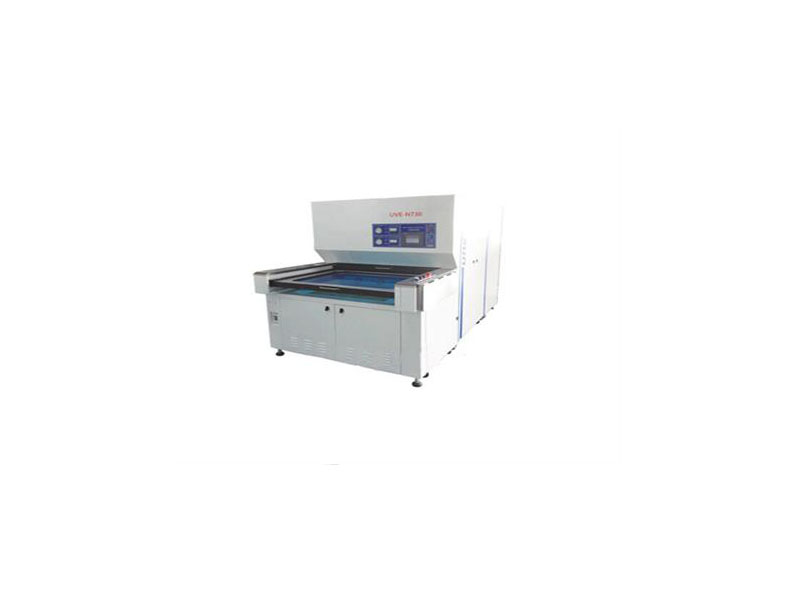

LED exposure machine UVE-M173 |
Total electric power |
AC220V50 Hz,100A 3KW |
|
Power cord |
25mm2 x4CX6m |
Effective irradiation area |
1200Lx610”W (mm) |
|
Exposure uniformity |
More than 90% |
use |
Exposure of liquid solder resist green paint |
|
Led light |
1.5KWx2 lamp |
Lighting time |
Within 3sec |
|
Stabilization time |
About 3-5 minutes |
UV intensity |
Select 2KW/5KW (switchable) |
|
Lamp current |
23A |
operational environment |
Dust-free air conditioning room +20~25C |
|
Outer Dimensions |
29411 x1988Wx1693H + 100H |
Table surface temperature |
MAX: room temperature +5C |
|
Body surface temperature |
MAX: room temperature +10C |
Circulating water pump |
NA |
|
Standard cooling water |
Water temperature: 20 ~ 25 C. |
Table cooling |
Switching time of cold air forced air cooling table: 2.5~3.5Sec. |
|
Transparent material |
Top: MYLAR bottom: strengthened glass vacuum: 4~5 Sec. |
Table height |
Up: 883mm down: 807mm. |
|
Vacuum degree requirement |
Transmission mode above -700mmHg: motor → timing belt → table top. |
External air pressure |
5kgf/cm² |
|
vacuum system |
Vacuum pump MSV-100-22 【 Vacuum detection switch+solenoid valve+relief needle valve+vacuum gauge 】→ table. |
man-machine |
Pro-face brand LCD touch man-machine interface |
|
Water thermometer |
NA |
programmable logic controller |
Mitsubishi FX-2N series pro-face |
|
Water pressure controller |
SNS-C102 |
pressure regulator |
R30008G(1/4 ") cooling system: 705HP scroll compressor. |
|
earth leakage protection |
Leakage circuit breaker abnormal emergency switch 25 red with RESET |
Cooling system protection |
Water flow protection, over-temperature protection, water flow control, high-voltage leakage detection and leakage detection relay |
