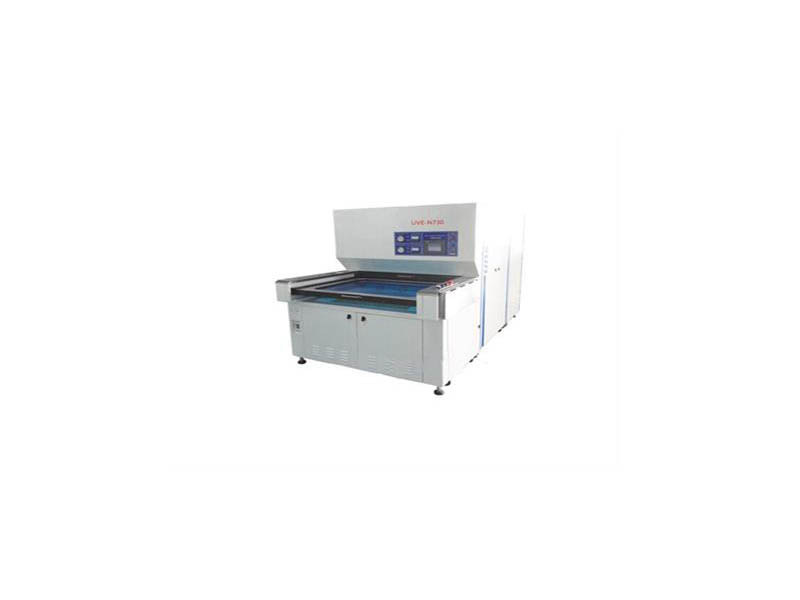

Exposure machine UVE-M520 |
|
|
Total electric power |
AC380V3 50 Hz 45A 16KVA |
|
Power cord |
16mm2 x4C |
|
Effective emission area |
610x916W (18”X24”X2) |
|
Exposure uniformity |
More than 85% |
|
use |
Circuit exposure of dry film and wet film of PC board |
|
fluorescent lamp |
5KWx2 lamp |
|
Lighting time |
Within 1.5sec |
|
Stabilization time |
About 10 minutes |
|
Lamp current |
22.5A UV |
|
Strength selection |
2KW/5KW (switchable) |
|
External cooling water |
Water temperature: 20~30C Cooling tower: 3 tons |
|
Table cooling |
The switching time of forced air cooling mesa is 4~5 Sec. |
|
Vacuum absorption |
6~8 Sec |
|
Straight void requirement |
Vacuum system above -700mmHg: vacuum pump MSV-100-22. |
|
man-machine |
Pro-face brand LCD touch display man-machine interface |
|
programmable logic controller |
Mitsubishi FX-2N series |
|
Machine size |
2945LLx1755Wx1693H+110H |
