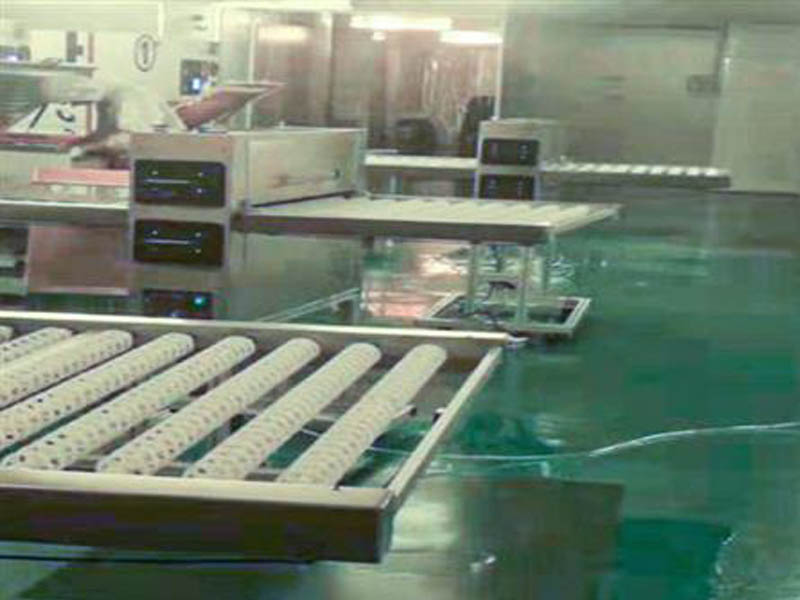

Parameters of reciprocating dust adhesion machine
Basic parameters of dust adhesion machine:
Suitable for exposure, screen printing, etc.
|
machine function |
Material dust removal |
|
Working effective width |
680mm (customizable) |
|
slab thickness |
0.01mm-3.0mm |
|
production efficiency |
30m/min (adjustable) |
|
operational altitude |
950mm±50mm (adjustable) |
|
Power supply/power |
Single-phase 220V AC 50HZ 800W |
|
Transmission mode |
Steel wire belt drive (wear-resistant and dust-proof) |
|
air supply |
6kgf/cm2 (adjustable) |
|
Number of dust rollers |
Upper and lower 2 (customizable) |
|
Number of sticky dust paper rolls |
Upper and lower volumes (customizable) |
|
consumable |
Sticky dust paper roll 620mm |
|
Machine material |
Aluminum profile+stainless steel |
|
Mechanical external warp dimension (MM) |
Width 100* depth 350* height 140cm |
|
ROll |
SUS304 Axle+Wear-resistant PU Wheel |
|
net weight |
180KG |
|
Wing length at both ends |
1600mm each |
|
remarks |
All the above are subject to the real thing. |
Basic configuration of dust adhesion machine:
|
name |
model |
unit |
quantity |
Land of production |
|
cylinder |
CDU-20X35 |
individual |
four |
Taiwan Province yuanzhuang yadeke |
|
solenoid valve |
5F202-090 |
individual |
one |
Taiwan Province yuanzhuang yadeke |
|
Dust-sticky paper roll |
620 long |
roll |
2/4 |
Low viscosity/high viscosity |
|
Dust roller |
680 long |
strip |
4/8 |
Imported low-viscosity material |
|
electrical machinery |
140W |
individual |
one |
Taiwan Province Delta |
|
remarks |
The above is subject to the real thing. |
|||
